ESD PEEK Compound

Surface Resistivity 10^6-10^9 Ohms/sq

Share to:

Description

ESD PEEK Properties &Data Of Injection Molded Specimens

Product information



Color

Black

Material ID

>ESD PEEK Compound <

Process

Extrusion Molding

Physical property

Standard

Value

Unit

Density

ISO 1183

1.38

g/cm³

Water Absorption

ISO 62

0.42

%

Mechanical behavior

Standard

Value

Unit

Tensile Modulus

ISO 527

1900

MPa

Tensile Strength At Break

ISO 527

95

MPa

Stain at Break

ISO 527

7.5

%

Flexural Strength

ISO 178

126

MPa

Flexural Modulus

ISO 178

3920

MPa

Izod Notch Impact 23°C

ISO 179

11

KJ/m²

Shore Hardness

ISO 869

84

D

Thermal

Standard

Value

Unit

HDT   1.80MPa

ASTM D846

315

°C

Melting Temperature

ISO 3148

310

°C

Electrical properties

Standard

Value

Unit

Surface Resistivity

ESD11.11

10E+6~10E+9

Ohms

Disclaimer:Data herein is typical and not to be construed as specifications.



ESD PEEK Compound Introduction

ESD PEEK compound is based on PEEK raw materials, and is mixed with carbon black, metal fibers, and anti-static masterbatch. It can achieve anti-static, static dissipation, conductivity, and electromagnetic interference (EMI) functions.

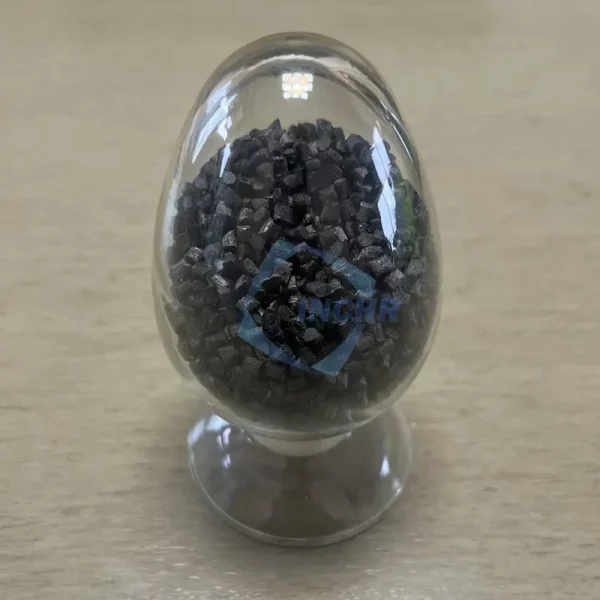

ESD PEEK compound is a regular black solid object with uniform and shiny color, hard texture, smooth surface and density of 1.4-1.45g/cm3. ESD PEEK sheet has good antistatic properties, mechanical strength, rigidity, high hardness, high temperature resistance, chemical resistance and hydrolysis resistance, wear resistance and friction properties, high creep resistance, good dimensional stability, and UV resistance. It has the characteristics of high-energy radiation resistance, inherent low flammability, and low smoke production when burning.



ESD PEEK Compound Features

ESD PEEK is a high-performance engineering plastic with excellent mechanical properties, chemical stability and anti-static properties. The following are some of the main features of ESD PEEK compound:

1.It has excellent mechanical strength and stiffness, and exhibits superior mechanical properties in high-strength and high-temperature environments.

2.ESD PEEK can work in high-temperature environments and can withstand long-term exposure to high-temperature environments without failure. It has good oxidation resistance and stability.

3.ESD PEEK has excellent corrosion resistance and can be used in extreme environments such as acid, alkaline and organic solvents.
